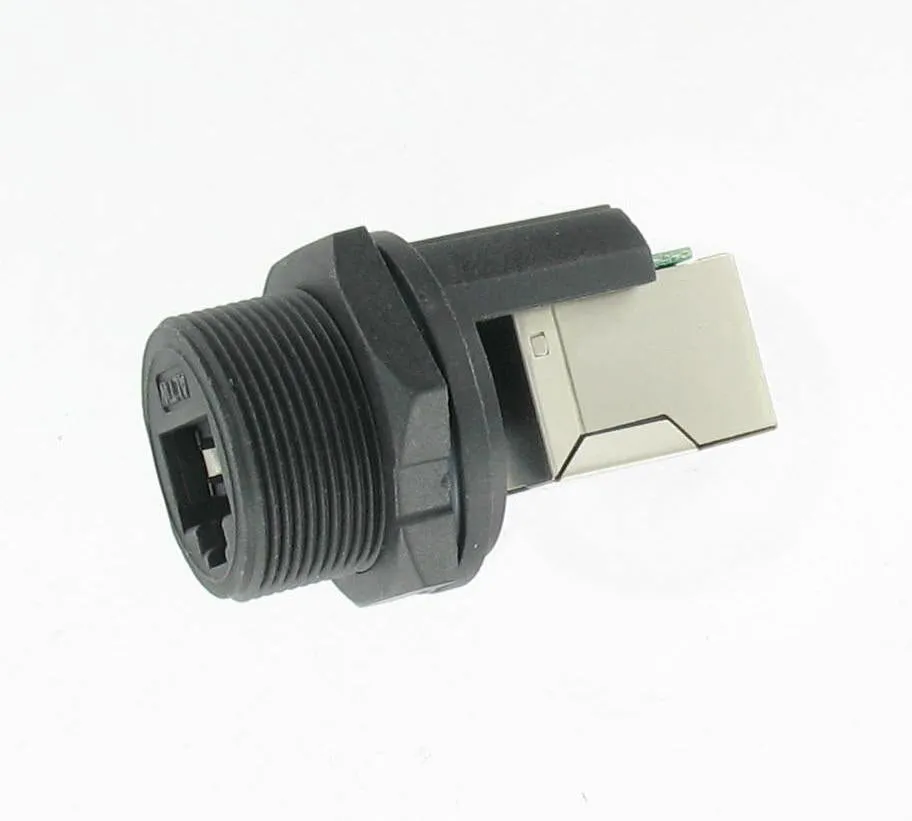

IP67 waterproof F/F RJ45 panel shielded coupler. This is a 'mated waterproof' part (ie. it is only waterproof if the cap is on or the appropriate mating cable housing is plugged in). CAT5e shielded, front nut the connector mounts from inside the panel it has a flat gasket to create the seal compression.

Mating accessories are available. This coupler has a front screw thread. It is one of the smallest panel RJ45 connectors on the market. The panel cut out dimension is 20.8mm, 19.4mm to a flat edge which allows uniform orientation and helps resist rotation during use.

The mating cable connector is SEL58-7A3258 and the cap is SEL16-7C3074
